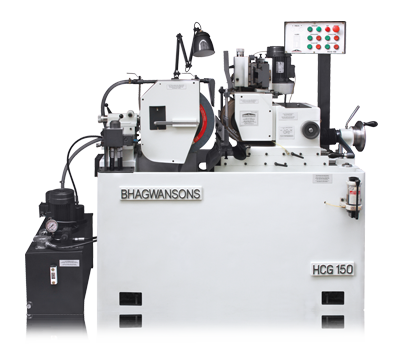

Centerless Grinder - HCG 150

Main Feature

• Grinding wheel & regulating wheel head fitted with precision roller/hydrodynamic bearings
• Regulating wheel variable speed drive in HCG - 250/200, optional in HCG - 150/100
• Separate motorized lubrication system for grinding wheel head with safety float switch
• Precision ball screw for depth of cut in HCG - 250/200, optional in HCG - 150/100
• Dressing slides hardened ground and protected with way wipers
• Grinding wheel duly balanced and easy to load and unload
• Apart from above, machines are compact, rigid and stable in design

Important Note: Auto plunge / Auto infeed grinding machines are available in all models (except CG-100)

Specifications for HCG-150 Capacity Max. opening between new wheels Max. width in infeed grinding 1-100 mm 150 mm Grinding Wheel Diameter Width Bore Speed 400 mm 150 mm 152 mm 203.2 mm 1600 R.P.M. (Min) 1800 R.P.M. (Max) Regulating Wheel Diameter Width Bore Recess both sides Speed 225 mm 250 mm 150 mm 110 mm 145 x 30 mm 20 R.P.M. (Min.) 40 R.P.M. (Med.) 100 R.P.M. (Max.) Tilting Angle +5°/-2° Swivelling Angle ±1° Power Requirements Grinding Wheel Motor Regulating Wheel Motor Coolant Pump Motor Lubrication Pump Hydraulic Unit Motor 7.5 KW/HP 0.75 KW/HP 0.18 KW/HP 0.16 KW/HP 0.25 KW/HP Dimensions & Weight Length Width Height Net Weight Approx. 2230 mm 1300 mm 1700 mm 2000 Kgs.
