Specifications for CG-100
Grinding Capacity	Diameter	Min. 1mm Max. 75mm
Grinding Wheel	Diameter Width Bore Speed	350 mm 100 mm 152 mm Min. 1800 R.P.M. Max. 2000 R.P.M.
Regulating Wheel	Diameter Width Bore Recess both sides Speed	225 mm 100 mm 76 mm 145 x 30 mm Min. 20 R.P.M. Med. 40 R.P.M. Max. 100 R.P.M.
Regulating Wheel	Tilting Angle	+5^°/-2^°
Power Requirements	Grinding Wheel Motor Regulating Wheel Motor Hydraulic Unit Motor	5.5/7.5 KW/HP 0.75/1.0 KW/HP 0.12/0.16 KW/HP
Dimensions & Weight	Length Width Height Centre Height of Wheels Net Weight Approx.	1650 mm 1050 mm 1510 mm 1000 mm 1600 Kgs.

Standard accessories	Optional accessories
Grinding wheel with flange Regulating wheel with flange Coolant pump with tank Hydraulic tank with pump Work rest blade for through feed grinding Hand pump lubrication for slides Machine lamp Splash guards Instruction manual Tool kit	Motorized centralized lubrication for slides Micro feed fine adjustment for depth of cut A.C. drive for regulating wheel head Wheel balancing stand with arbor Additional grinding wheel flange Additional regulating wheel flange Additional work rest blade through feed Additional work rest blade infeed Magnetic coolant separator Paper cum magnetic coolant separator Anti vibration pads Vibratory bowl feeder Bar feeder for long bar grinding Automatic feeder for through feed grinding Automatic balancing for grinding wheel

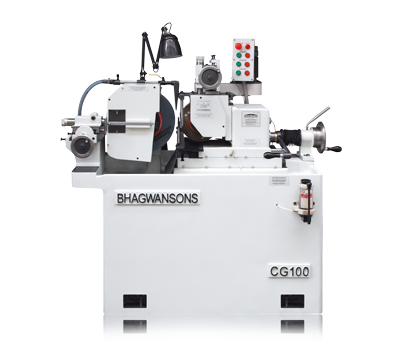

Mechanical Centerless Grinder - CG 100
