Grinding wheel & regulating wheel head fitted with precision roller/hydrodynamic bearings
Regulating wheel variable speed drive in HCG - 250/200, optional in HCG - 150/100
Separate motorized lubrication system for grinding wheel head with safety float switch
Precision ball screw for depth of cut in HCG - 250/200, optional in HCG - 150/100
Dressing slides hardened ground and protected with way wipers
Grinding wheel duly balanced and easy to load and unload
Apart from above, machines are compact, rigid and stable in design

Specifications for HCG-100
Grinding Capacity	Diameter	Min. 1mm Max. 75mm
Grinding Wheel	Diameter Width Bore Speed	350 mm 100 mm 152 mm Min. 1800 R.P.M. Max. 2000 R.P.M.
Regulating Wheel	Diameter Width Bore Recess both sides Speed	225 mm 100 mm 76 mm 145 x 30 mm Min. 20 R.P.M. Med. 40 R.P.M. Max. 100 R.P.M.
	Tilting Angle	+5^°/-2^°
	Swivelling Angle	±1^°
Power Requirements	Grinding Wheel Motor Regulating Wheel Motor Coolant Pump Motor Lubrication Pump Hydraulic Unit Motor	5.5 KW/HP 0.75 KW/HP 0.12 KW/HP 0.25 KW/HP 0.75 KW/HP
Dimensions & Weight	Length Width Height Centre Height of Wheels Net Weight Approx.	1750 mm 1050 mm 1620 mm 1000 mm 1700 Kgs.

Standard accessories	Optional accessories
Grinding wheel with flange Regulating wheel with flange Coolant pump with tank Hydraulic tank with pump Work rest blade for through feed grinding Hand pump lubrication for slides Machine lamp Splash guards Instruction manual Tool kit Micro feed fine adjustment for depth of cut.	Servo control voltage stabilizer Motorized centralized lubrication for slides Fully enclosed splash guards A.C. drive for grinding wheel head A.C. drive for regulating wheel head Template truing slides for profile dressing Hydrodynamic bush bearings for GW head Bush bearing for RW head Wheel balancing stand with arbor Additional grinding wheel flange Additional regulating wheel flange Additional work rest blade through feed Additional work rest blade infeed Magnetic coolant separator Paper cum magnetic coolant separator Anti vibration pads Vibratory bowl feeder Hydraulic oil cooler Profile templates Vibratory bowl feeder Bar feeder for long bar grinding Auto infeed grinding with hydraulic cylinder Auto ejector for infeed grinding hydraulic Auto ejector for infeed grinding pneumatic Auto lifter for infeed grinding Auto loading attachment for infeed Automatic feeder for through feed grinding Automatic balancing for grinding wheel

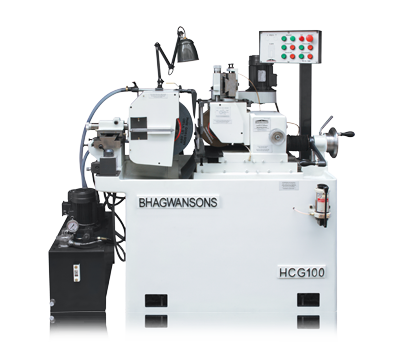

Centerless Grinder - HCG 100
